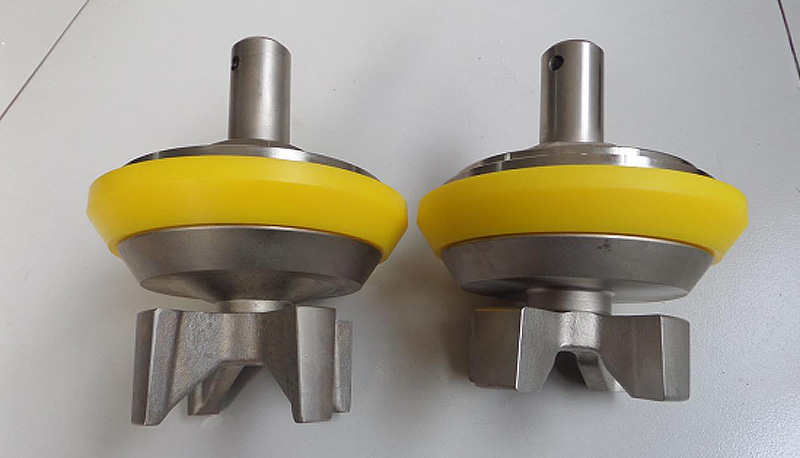

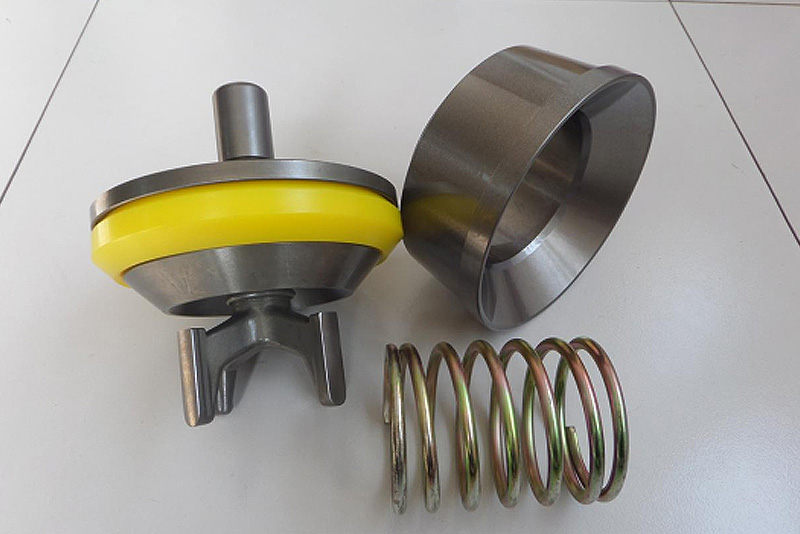

Valve assembly

The valve assembly is a key component of the hydraulic end of a mud pump, with high operating frequency and high impact resistance. The valve body and valve seat are all made of high-grade alloy steel20CrMn- Ti forged as a whole, and processed and manufactured according to strict process regulations to ensure high smoothness and accurate di- mensions. Advanced heat treatment methods are used, with a carburiza- tion depth of more than 1.8, so that the product achieves high strength, high toughness, and a working surface hardness of HRC60 or above. The sealing parts are made of polyurethane or special rubber,which is ex- tremely wear-resistant, has a long service life, and an effective use time of more than 300 hours.

阀总成是泥浆泵液力端的关键部件，工作频率高，受冲击大。阀体，阀座均采用高级合金钢20CrMnTi整体锻造,并按照严格的工艺规定加工制造,保证光洁度高,尺寸准确,采用先进的热处理方法,渗碳深度1.8以上，使产品获得高强

度,高韧性,工作表面硬度达HRC60以上.密封件采用聚氨脂或特制橡胶制造,极为耐磨,使用寿命长,有效使用时间大于300小时。
